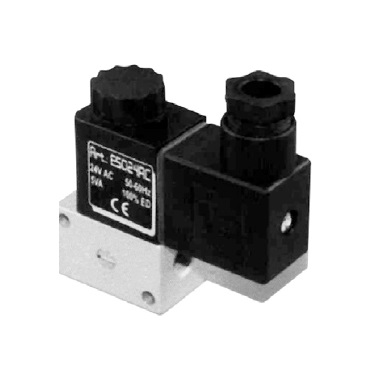

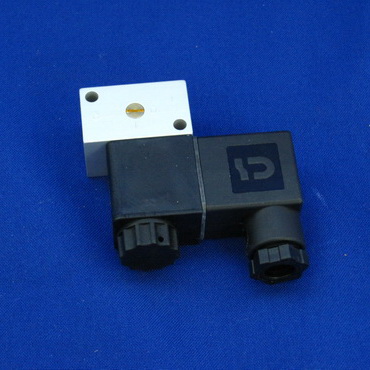

4427 - Соленоидный вентиль прямой

DN

		Description - Solenoid valve directly operated with 3/2 - ways function - All entrles have G 1/8" - Single stable version - Body Aluminium anodised, with minimal external dimensions - Piston Stainless steel AISI 303 - Sealings NBR - Screws Stainless steel AISI 304
Air entry	G 1/8"
Dimensions	1,3 mm
Air pressure	0 - 10 bar
Temperature	-10°C- +70°C
Enclosure	PI 65 - DIN 40050
Voltage	24V AC 24V DC 230V AC
Power consumption	SVA 3W 5VA
Air flow	50 l/min
