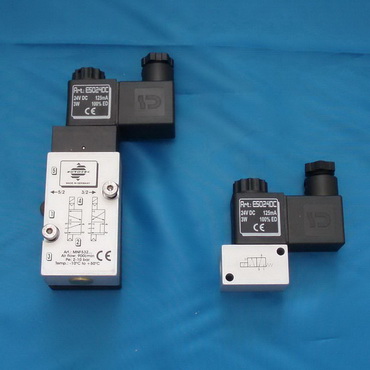

4430 - Соленоидный вентиль (клапан)
.JPG "4430 - Соленоидный вентиль (клапан) . Фотография")
|
DN
|
||||||
| Air entry | G 1/4" | |||||
| Dimensions | 5,5 mm | |||||
| Air pressure | 2 - 10 bar | |||||
| Temperature | -10°C- +50°C | |||||
| Enclosure | PI 65 - DIN 40050 | |||||
| Voltage | 24V AC 24V DC 230V AC | |||||
| Power consumption | SVA 3W 5VA | |||||
| Air flow | 50 l/min | |||||
Description
- Solenoid valve NAMUR with combined 5/2 - and 3/2 - ways function ith standard coil and connector
- Easy change over from 5/2 - to 3/2 - ways operation by innovative sealing plate
- Single stable version
- Manual override as standard
- Body Aluminium anodised, with minimal external dimensions
- NAMUR copling plate PA6 - 30% Glass fibre
- Piston Stainless steel AISI 303, Sealing NBR, Screws Stainless steel AISI 304
